Oase Proficlear Premium Compact M Drum Filter Pump EGC
Oase Proficlear Premium Compact M Drum Filter Pump EGC
Code: 47009
£ 2,769.99
Self cleaning drum filter pump fed, 3 year warranty on application

Oase Premium Compact M Drum Filter, this is the pump fed version,which would be mounted higher than the pond level

We currently have this model in stock for immediate delivery,package deals available

Suitable for Koi ponds up to 20,000 litres 4400 gallons.

Package deals available on this drum filter fitted with an Oase Bitron 110c UV Clarifier or and an Aquamax pump, contact us for prices with your requirements.

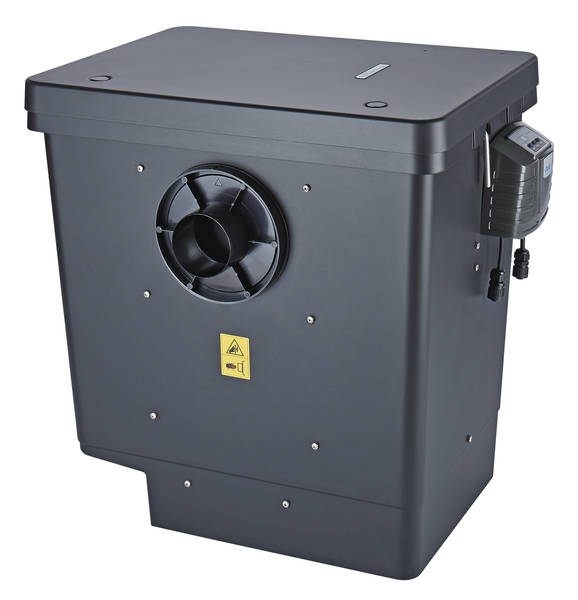

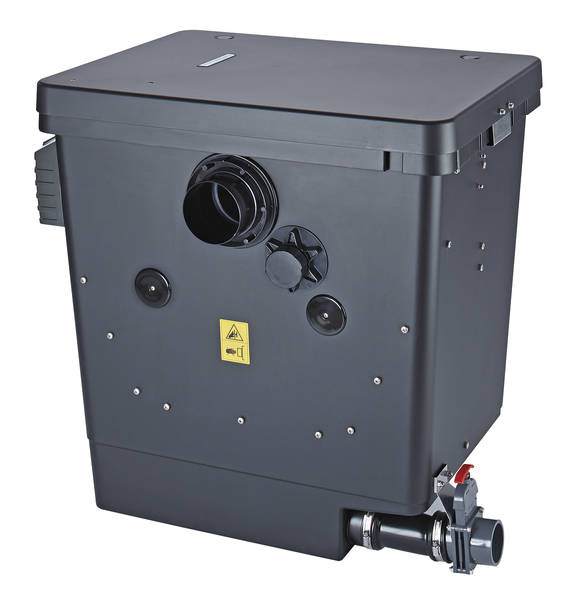

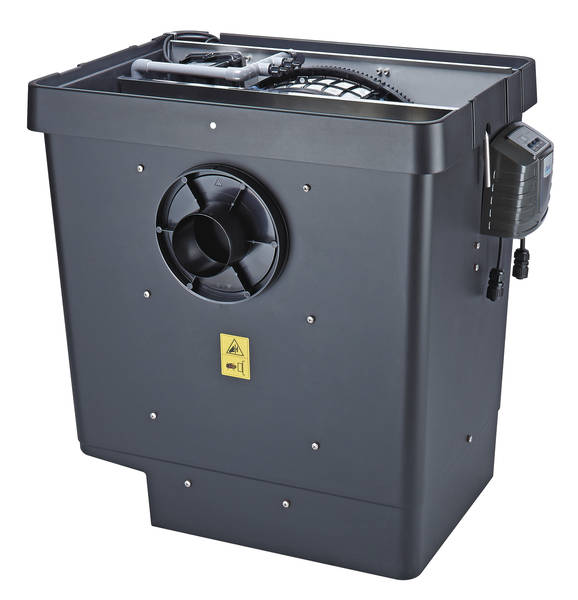

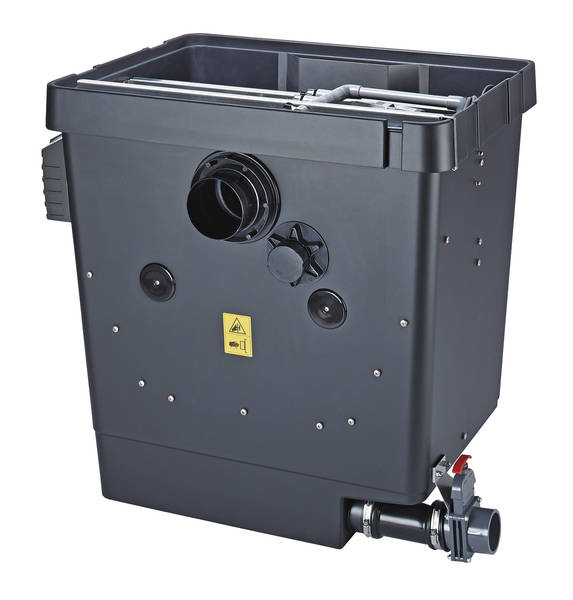

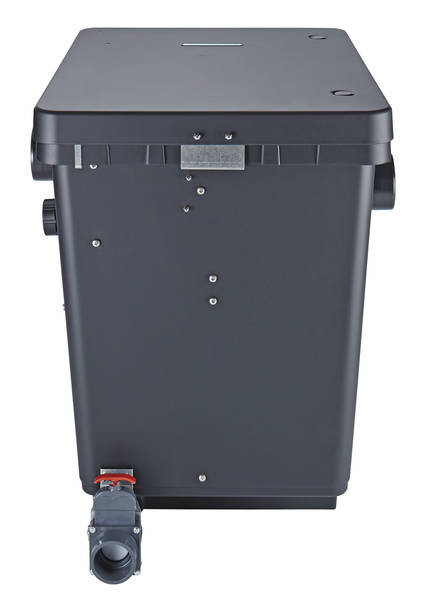

ProfiClear Premium Compact-M pumped EGC

Flow-through drum filter

Item number: 47008

Top product characteristics

  • Professional compact drum filter as inexpensive alternative for smaller ponds, particularly koi ponds
  • High separation performance in the pump-fed as well as gravity-fed principle
  • Minimal space requirements and effective integration



ProfiClear Premium Compact pump-fed






Product characteristics

  • Inexpensive alternative for smaller ponds, particularly koi ponds
  • Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
  • Available in the pump-fed principle and in the gravity-fed principle
  • Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)

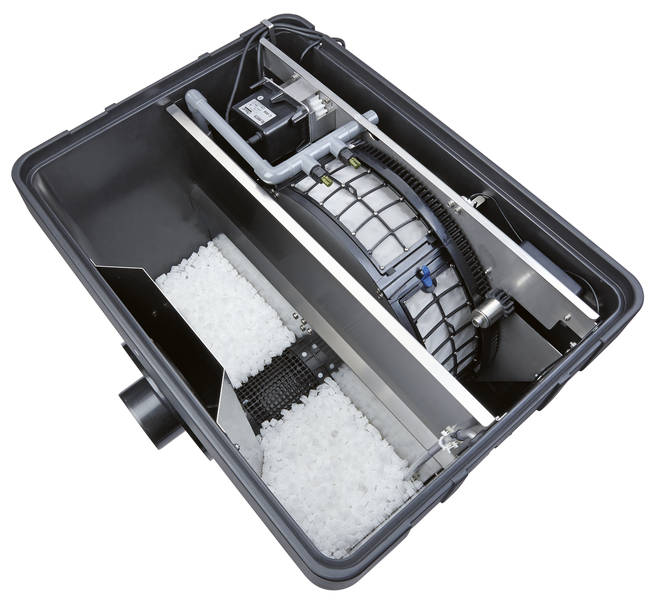

  • With the Moving Bed System for optimal water movement and water cleaning
  • High separating capacity through deep-bed filtration of up to 60 microns
  • Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
  • Innovative and reliable product »made in Germany« (except pressure pump)
  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
  • Particularly quiet operation thanks to extensive noise insulation
  • Individually removable sieve elements (no tools required) and free-wheel function
  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
  • Minimal install height for full flexibility with gravity-fed systems

Technical data

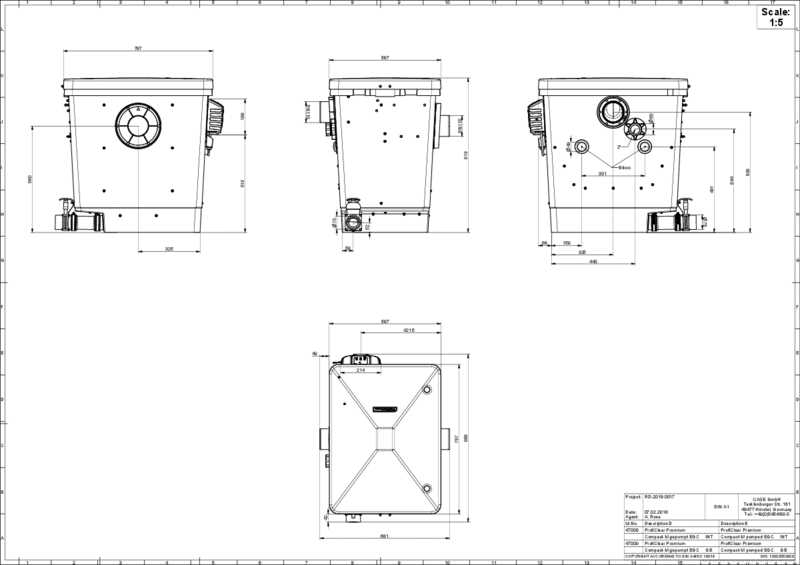

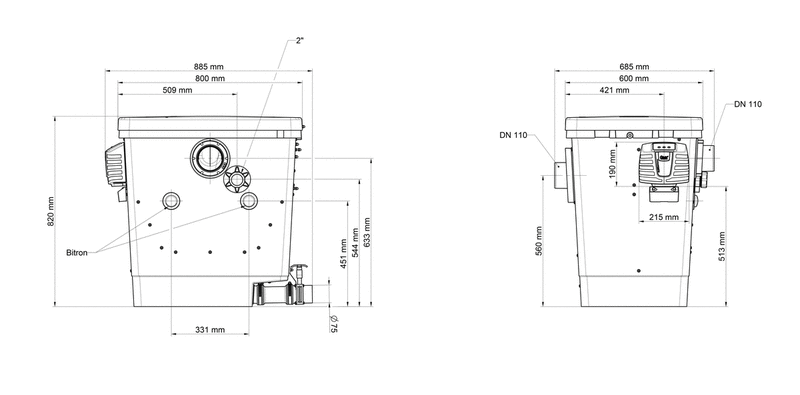

Dimensions (L x W x H) mm 885 x 685 x 820
Rated voltage   230 V>50 Hz
Power consumption W 5
Power consumption, cleaning W 670
Cable length m 5.00 + 1.00
Net weight kg 80.50
Guarantee (+ request guarantee) Years 2 + 1
Control unit   Microcontroller
Temperature display   Digital
Coarse debris extraction µm 80
Number of nozzles/rinse quantity   2 x 3.5 l/min
Scavenging pump   4 bar
Automatic rinsing system   manually, Sensor, Time interval
Material   GRP Duroplast/stainless steel
Biological filter surface m² 38.2
Biological filter surface protected m² 32.2
Number of inlets Units 2
Inlet connections mm 50
Inlet connections   1 x 2" + Bitron
Connection to   AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W
Number of outlets Units 1
Outlet connections   DN 110
Sludge discharge connections   DN 75, DN 110
Flush trough connection   DN 110
Min. flow rate l/h 7500
Max. flow rate l/h 12500
Suitable for ponds up to max. m³ 80.0
Suitable for ponds with fish stock m³ 40.0
Suitable for ponds with koi m³ 20.0
Type of use   Pump fed system
Installation height above water level cm 32.0
Other   Aeration pre-installed
incl. 40l Hel-X 13 Biomedia
Pollutant discharge incl. slide valve
Item number   47008
EAN   4010052470085
Clear Water Guarantee
Automatic self-cleaning
Easily concealed filter
Installing the filter
Suitable for swim ponds
Connection EGC
VDE-certified

Technical details




Spare parts

Position Item no. Product name Number
1 18795 Spare part lid cpl. drum filter 1
2 21981 Spare cover gasket seal drum filter 1
3 43383 Add. pack Hel-X 13 mm 20 l 2
4 47012 Upgrade-Controller ProfiClear Prem. EGC 1
5 18692 Fuse T8A 250 V 1
6 42855 Container ProfiClear Compact pump-fed 1
7 18842 Clip drum filter 1
8 11979 Cable protection Quintet>drum filter
9 40022 ASM waste channel BioTec Premium 80000 1
10 6128 Lock nut V2A DIN 985 M6 42
11 72198 Spare ASM drum motor pump-fed 1
12 15596 Screw V4A DIN 912 M6 x 10 10
14 44231 Spare nozzle ProfiClear Premium Compact 1
15 49841 ASM cleaning tube Compact M inject 1
16 41472 Spare hose bracket BioTec>Compact 1
17 41476 Spare drum BioTec>Compact 1
18 42858 Middle sep. wall ProfiCl. Compact 1
19 18791 Spare drum bearing drum filter 1
20 16288 Drum shaft 1
21 19515 Locking pin V2A DIN 11023 - 6 mm 1
22 41889 Spare clip drum filter 1
23 44227 Spare sieve ProfiClear Compact 80µm 1
24 18446 Spare drain DN75 Premium 1
25 18448 Spare srews set drain DN75 Premium 1
26 19005 ASM connection set DN 110 1
27 40114 Fastening kit rinse pump rear 1
28 17918 Oval head screw V2A DIN 7985 M6 x 25 16
29 6143 Washer VA DIN 9021 6.4 4
30 20609 Fiberplate DIN 7603 6 x 12 x 1 mm 52
31 6117 Cap nut V2A DIN 1587 M6 20
32 40074 Fastening kit rinse pump front 1
33 41479 Spare connector waste pump BioTec/Comp. 1
34 40075 Rinse pump 4 bar - 2 m cable 1
35 18943 Pre-filter rinse pump 1
38 44324 Spare connection air stone Compact 1
39 42890 Add. pack air connector ProfiCl. Compact 1
40 19402 Cable holder drum filter 8
41 42859 Rear sep. wall ProfiCl. Compact Moving 1
42 14596 Oval head screw V2A DIN 7985 M6 x 16 34
44 43952 Gasket Compact sep. wall back left 1
45 17216 Airstone clamp bio filter 4
46 42866 Air stone ProfiClear Compact 2
47 43353 Mesh tube bracket 2
49 42862 Mesh tube ProfiClear Compact pump-fed 1
50 44325 Spare gasket set Compact middle 1
51 12370 Oval head screw H-V2A DIN 7985 M5 x 10 2
52 42860 Perforated sheet ProfiCl. Compact middle 1
53 14752 Lock nut V2A DIN 985 M5 2
54 27572 Oval head screw CZ-V2A DIN 7981 6.3 x 32 12
55 43756 Gasket mesh tube 2016 1
56 26963 Intake 100 1
57 35570 Replacement Plug 1
58 22746 Add. pack drum filter pump-fed II 1
59 18798 Spare grommet drum filter pump-fed 1
60 50540 Connection elbow 2"/90° Bitron 1
62 23192 Spare drum gasket 1
63 20320 Cylinder screw V2A DIN 912 M4 x 20 2
64 40129 ASM signal box pumped 1
65 40099 Mounting pl.float switch BioT./Comp.pump 1
66 11113 Safety nut V2A DIN 985 M4 2
67 41481 Spare seperating wall BioTec/Comp. pump 1
68 19023 O-Ring EPDM 6 x 1.5 SH70 A 1
69 18794 Spare plain roller drum filter 1
76 43867 Spare set ASM gland seal 1
77 49847 Cover cap nut M6 1
